Geochemical behavior and recycling of sulfur in subduction zones
-
摘要:
俯冲带是全球最大的物质循环系统，控制着硫(S)在地球内部圈层及表层的循环，影响着大气圈、水圈、生物圈、岩石圈的稳定性以及地球的宜居性。厘清S在俯冲带中的地球化学行为和循环特征对理解地球各储库的氧化还原状态、岩浆作用与演化、成矿物质聚集、以及地球大气成分等具有重要意义。本文首先总结了进入俯冲带之前的大洋岩石圈的S结构模型，对S在大洋板片中的分布状态和地球化学特征进行了系统归纳。随后，系统阐述了俯冲带高压-超高压变质岩记录的板片变质及脱水过程中硫的地球化学行为。岩石学研究表明俯冲板片中的S多以硫化物相存在，硫酸盐矿物在弧前深度就已被释放或分解。相较于熔体，俯冲带流体中S的溶解度更高，是运移硫的更有效方式。DEW模型计算结果显示，流体中S含量总体较低，但在俯冲板片~90km处其含量有一个峰值(浓度0.5%~1.0%)。岩相学证据、地球化学测试结果、磷灰石S近边吸收结构(S-XANES)特征以及模拟结果都显示俯冲深部流体中S多以HS-及H2S形式存在，不含大量的SO42-及硫酸盐；中fS2流体有利于S迁移出俯冲板片，从而促进俯冲带大规模S循环，而高fS2流体在流-岩交换过程沿流体通道发生S的锁固作用而不利于俯冲带S循环。质量平衡计算显示全球俯冲带S输入通量为4.65×1013g/yr，弧下深度板片S输出通量为2.91×1012g/yr，板片-岛弧S循环效率仅6.3%。俯冲板片在弧下深度可能存在一个短暂高效的S释放窗口，释放流体的δ34S值为-2.1±3.0‰。基于高压-超高压变质岩中硫化物的研究，初步厘清了俯冲板片中S的地球化学行为，首次从板片角度全面、定量地限定了俯冲带的脱硫通量、效率、种型和同位素特征，提出俯冲带循环的S不是岛弧岩浆的氧化剂，与岛弧环境的正δ34S值也无直接因果联系，对解析俯冲带S循环和理解地球长期的S循环具有重要意义。最后，本文还展望了俯冲带S循环的未来发展方向，应在俯冲带流体氧化还原性质(硫酸盐的命运)、俯冲沉积物对S循环的制约、俯冲带环境下多硫同位素的分馏效应、S循环与其它挥发分(如C等)循环之间的耦合关系、地球历史上深部S循环等方向做出探索，更深入地理解俯冲带及全球S循环过程。
Abstract:Subduction zone is the largest material recycling system on the Earth, mediating the sulfur exchange between Earth's interior and surface. Sulfur is one of the key elements that connects the atmo-, hydro-, bio-, and lithosphere and plays a critical role in Earth habitability. Knowing the behavior and recycling of S in the subduction zone is critical to understand the redox state of geological reservoirs, arc magmatism and ore metallogenesis, as well as change and evolution of Earth's atmosphere. This paper first presents the sulfur structure in the pre-subduction oceanic lithosphere, reviewing the occurrences of S-bearing phases and their geochemical compositions. Then, this study systematically reviews the S behavior during the metamorphic and dehydration processes in the subducted slab recorded by high-pressure and ultrahigh-pressure (HP-UHP) metamorphic rocks. Petrologic investigation shows that S in the subducting slab occurs mostly in the form of sulfide, and that sulfate is mostly dissolved or broken down at the fore-arc depths. Sulfur solubility in slab fluids is much higher in comparison to melts, suggesting that fluid is the more effective agent for transferring S from the slab to the mantle wedge. DEW (Deep Earth Water) modeling indicates that S concentration in slab fluids is generally low; however, it reveals a distinct [S] peak (0.5%~1.0%) at ~90km depth. All evidence from petrologic observations, chemical analyses, apatite S-XANES (X-ray Absorption Near Edge Structure) characteristics, and DEW modeling show that S species in slab fluids are dominated by reduced HS- and H2S at given subduction zone P-T-fO2 conditions, without significant SO42- or sulfate. Medium-fS2 fluids can transport S and thus are effective in transferring S out of the slab, whereas high-fS2 fluids cause S sequestration along fluid pathways and considerably reduce long-distance S transfer. Mass-balance calculations demonstrate that the global S influx is estimated at 4.65×1013g/yr, slab outflux at 2.91×1012g/yr at sub-arc depth, resulting in a slab-arc S recycling efficiency of ~6.3%. A major S release window is constrained at depths of 70~100km, during which the released slab fluid has a negative δ34S value of -2.1±3.0‰. Based on researches of HP-UHP metamorphic rocks, the recent studies shed light on the S behavior in the subduction zone, and for the first time from the slab perspective, reveal the slab desulfuration flux and efficiency, sulfur species and isotopic composition during the slab-arc S recycling. It is suggested that slab S is not an oxidant accounting for the high fO2 of arc magmas and also not related to the heavy δ34S signature observed in arc volcanic rocks. The study sheds light on S recycling in subduction zone and long-term global S cycle. At the end, this paper proposes some research directions in the future that will likely be fruitful in understanding subduction zone S recycling, including redox state of slab fluids (fate of sulfate), controls of metasediment on sulfur cycle, multiple sulfur isotope fractionation in subduction environment, the coupling/decoupling recycling between S and other volatiles (C and etc.), and deep sulfur cycle through geological time.
-
Key words:
- Subduction zone /
- Sulfur recycling /
- HP-UHP metamorphic rocks /
- Slab fluids /
- Arc fO2
-
-

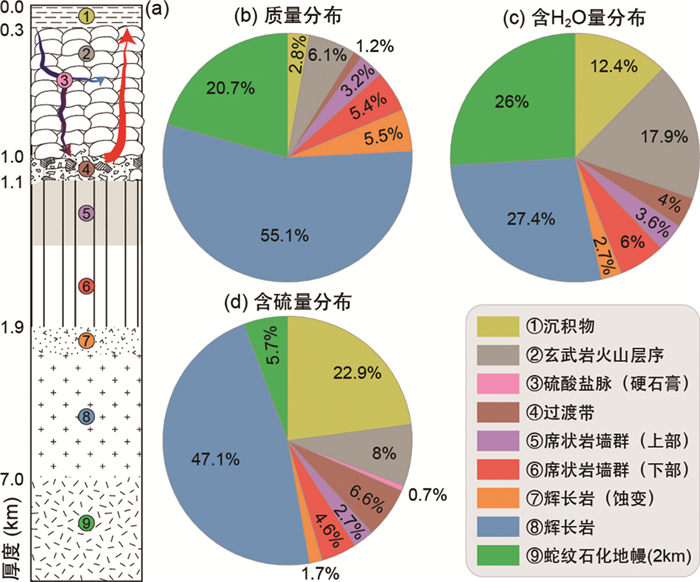

图 1
大洋岩石圈剖面结构(a)及各岩性序列对总质量(b)、含水量(c)和含硫量(d)的质量占比
Figure 1.
Schematic lithologic successions of typical oceanic lithosphere (a) and their mass (b), water (c), sulfur (d) proportions categorized by source
图 2
俯冲洋壳高压-超高压变质岩中含硫相的岩相学特征
Figure 2.
Photomicrographs of sulfides in oceanic HP-UHP metamorphic rocks

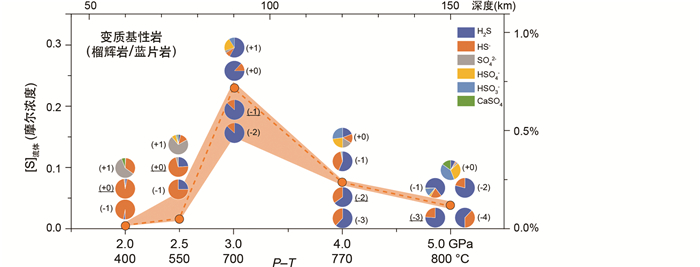

图 3
利用DEW模型计算的俯冲基性洋壳释放流体中的[S]及种型比例(据Li et al., 2020修改)
Figure 3.
Sulfur concentration and species in slab fluids calculated by the DEW model (modified after Li et al., 2020)

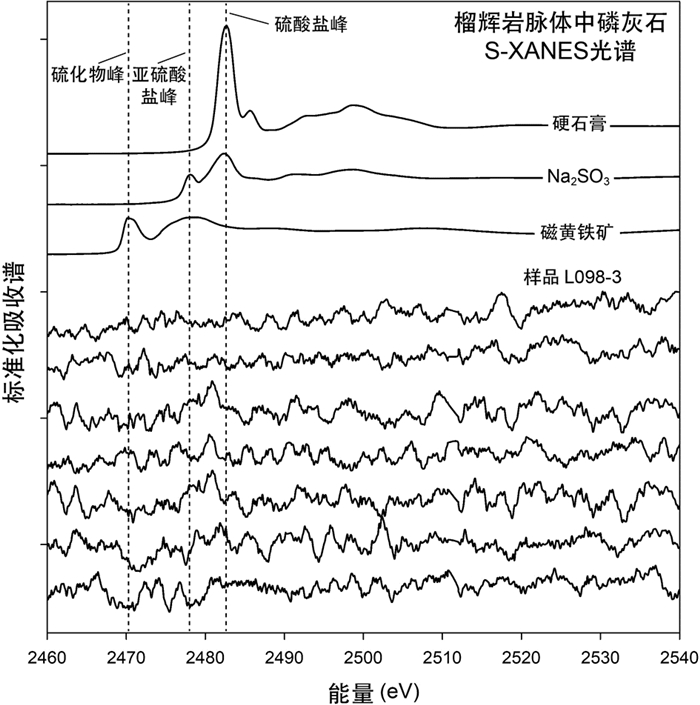

图 4
高压榴辉岩脉体中磷灰石的S-XANES光谱(据Li et al., 2021b修改)
Figure 4.
Sulfur XANES spectra of apatite in the eclogite-facies vein(modified after Li et al., 2021b)

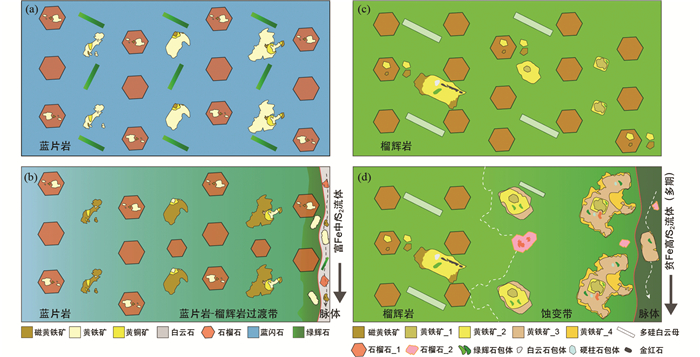

图 5
不同性质流体作用下流体-岩石反应过程中S的迁移、交换、再分配示意图(据Li et al., 2021b修改)
Figure 5.
Schematic illustration of the sulfide transformation and redistribution during fluid-rock interaction caused by Fe-rich medium fS2 fluid (a, b) and Fe-poor high fS2 fluid (c, d)(modified after Li et al., 2021b)

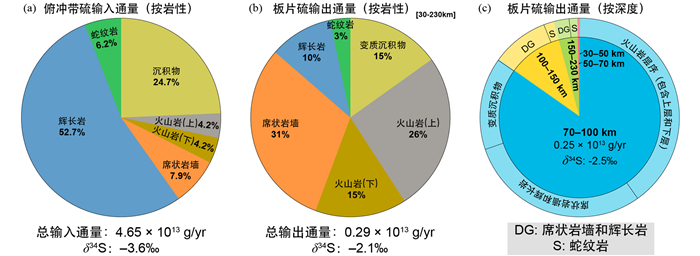

图 6
俯冲大洋板片各岩性对S的输入通量(a)、输出通量(b)的贡献及俯冲带在不同深度的S释放分布(c)
Figure 6.
Subduction sulfur input (a) and output (b) categorized by source, and estimated slab sulfur outflux categorized by depth (c)

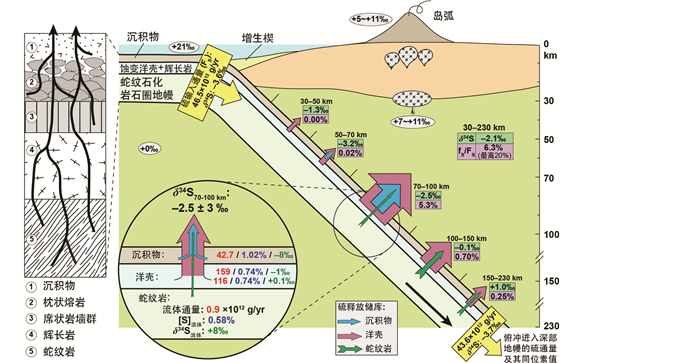

图 7
俯冲带硫循环模型(据Li et al., 2020修改)
Figure 7.
Diagram illustrating fluid-mediated sulfur cycle in the subduction zone(modified after Li et al., 2020)
表 1
标准大洋岩石圈板片的硫结构
Table 1.
Sulfur structure in the pre-subduction oceanic lithosphere
序号 俯冲洋壳岩性序列 厚度(m) 密度(g/cm3) S含量(×10-6) δ34S (‰) 参考文献 1 沉积物 平均300 2.50 6000 (均值) -17.0 Goldhaber, 2003 2 玄武岩火山层序 平均600 2.76 940 (均值) -6.0 Alt and Shanks, 2011 3 硫酸盐脉(硬石膏) 不均一分布于2与6中，约为洋壳总S量的1% Alt, 1995 4 过渡带(强矿化带) 15 2.80 9740±6900 +3.0 Alt, 1995 5 过渡带 100 2.80 3150±4300 +3.0 Alt, 1995 6 席状岩墙群(上部) 平均300 2.92 610±300 +0.6 Alt, 1995 7 席状岩墙群(下部) 平均500 2.92 620±340 +2.0 Alt, 1995 8 辉长岩(蚀变层) 500 2.98 230±190 +0.4 Alt, 1995 9 辉长岩 5000 2.98 620±180 +0.1 Alt, 1995 10 蛇纹石化地幔 2000 2.80 200±180 +7.3 Schwarzenbach et al., 2016 总板片 9315 *4.65×1013 g/yr -3.6 Li et al., 2020 注：*该数值指进入俯冲带的全球板片携带的S通量
下载: 导出CSV
-
Ague JJ, Tassara S, Holycross ME, Li JL, Cottrell E, Schwarzenbach EM, Fassoulas CG and John T. 2022. Slab-derived devolatilization fluids oxidized by subducted metasedimentary rocks. Nature Geoscience, 15(4): 320-326 doi: 10.1038/s41561-022-00904-7
Alt JC, Shanks Ⅲ WC and Jackson MC. 1993. Cycling of sulfur in subduction zones: The geochemistry of sulfur in the Mariana island arc and back-arc trough. Earth and Planetary Science Letters, 119(4): 477-494 doi: 10.1016/0012-821X(93)90057-G
Alt JC. 1994. A sulfur isotopic profile through the troodos ophiolite, Cyprus: Primary composition and the effects of seawater hydrothermal alteration. Geochimica et Cosmochimica Acta, 58(7): 1825-1840 doi: 10.1016/0016-7037(94)90539-8
Alt JC. 1995. Sulfur isotopic profile through the oceanic crust: Sulfur mobility and seawater-crustal sulfur exchange during hydrothermal alteration. Geology, 23(7): 585-588 doi: 10.1130/0091-7613(1995)023<0585:SIPTTO>2.3.CO;2
Alt JC and Teagle DAH. 2000. Hydrothermal alteration and fluid fluxes in ophiolites and oceanic crust. In: Dilek Y, Moores EM, Elthon D and Nicolas A (eds. ). Ophiolites and Oceanic Crust: New Insights from Field Studies and the Ocean Drilling Program. Geological Society of America, 273-282
Alt JC, Shanks Ⅲ WC, Bach W, Paulick H, Garrido CJ and Beaudoin G. 2007. Hydrothermal alteration and microbial sulfate reduction in peridotite and gabbro exposed by detachment faulting at the Mid-Atlantic Ridge, 15°20'N (ODP Leg 209): A sulfur and oxygen isotope study. Geochemistry, Geophysics, Geosystems, 8(8): Q08002
Alt JC, Laverne C, Coggon RM, Teagle DAH, Banerjee NR, Morgan S, Smith-Duque CE, Harris M and Galli L. 2010. Subsurface structure of a submarine hydrothermal system in ocean crust formed at the East Pacific Rise, ODP/IODP Site 1256. Geochemistry, Geophysics, Geosystems, 11(10): Q10010
Alt JC and Shanks WC. 2011. Microbial sulfate reduction and the sulfur budget for a complete section of altered oceanic basalts, IODP Hole 1256D (eastern Pacific). Earth and Planetary Science Letters, 310(1-2): 73-83 doi: 10.1016/j.epsl.2011.07.027
Alt JC, Garrido CJ, Shanks Ⅲ WC, Turchyn A, Alberto Padrón-Navarta J, López Sánchez-Vizcaíno V, Gómez Pugnaire MT and Marchesi C. 2012a. Recycling of water, carbon, and sulfur during subduction of serpentinites: A stable isotope study of Cerro del Almirez, Spain. Earth and Planetary Science Letters, 327-328: 50-60 doi: 10.1016/j.epsl.2012.01.029
Alt JC, Shanks WC, Crispini L, Gaggero L, Schwarzenbach EM, Früh-Green GL and Bernasconi SM. 2012b. Uptake of carbon and sulfur during seafloor serpentinization and the effects of subduction metamorphism in Ligurian peridotites. Chemical Geology, 322-323: 268-277 doi: 10.1016/j.chemgeo.2012.07.009
Bach W, Garrido CJ, Paulick H, Harvey J and Rosner M. 2004. Seawater-peridotite interactions: First insights from ODP Leg 209, MAR 15°N. Geochemistry, Geophysics, Geosystems, 5(9): Q09F26
Baker DR and Moretti R. 2011. Modeling the solubility of sulfur in magmas: A 50-year old geochemical challenge. Reviews in Mineralogy and Geochemistry, 73(1): 167-213 doi: 10.2138/rmg.2011.73.7
Behrens H and Webster JD. 2011. Studies of sulfur in melts: Motivations and overview. Reviews in Mineralogy and Geochemistry, 73(1): 1-8 doi: 10.2138/rmg.2011.73.1
Bénard A, Klimm K, Woodland AB, Arculus RJ, Wilke M, Botcharnikov RE, Shimizu N, Nebel O, Rivard C and Ionov DA. 2018. Oxidising agents in sub-arc mantle melts link slab devolatilisation and arc magmas. Nature Communications, 9(1): 3500 doi: 10.1038/s41467-018-05804-2
Brown JL, Christy AG, Ellis DJ and Arculus RJ. 2014. Prograde sulfide metamorphism in blueschist and eclogite, New Caledonia. Journal of Petrology, 55(3): 643-670 doi: 10.1093/petrology/egu002
Cabral RA, Jackson MG, Rose-Koga EF, Koga KT, Whitehouse MJ, Antonelli MA, Farquhar J, Day JMD and Hauri EH. 2013. Anomalous sulphur isotopes in plume lavas reveal deep mantle storage of Archaean crust. Nature, 496(7446): 490-493 doi: 10.1038/nature12020
Canfield DE. 2004. The evolution of the Earth surface sulfur reservoir. American Journal of Science, 304(10): 839-861 doi: 10.2475/ajs.304.10.839
Canfield DE and Farquhar J. 2009. Animal evolution, bioturbation, and the sulfate concentration of the oceans. Proceedings of the National Academy of Sciences of the United States of America, 106(20): 8123-8127 doi: 10.1073/pnas.0902037106
Canfield DE and Farquhar J. 2012. The global sulfur cycle. In: Knoll AH, Canfield DE and Konhauser KO (eds. ). Fundamentals of Geobiology. Blackwell Publishing Ltd., 49-64
Canil D and Fellows SA. 2017. Sulphide-sulphate stability and melting in subducted sediment and its role in arc mantle redox and chalcophile cycling in space and time. Earth and Planetary Science Letters, 470: 73-86 doi: 10.1016/j.epsl.2017.04.028
Cervantes P and Wallace PJ. 2003. Role of H2O in subduction-zone magmatism: New insights from melt inclusions in high-Mg basalts from central Mexico. Geology, 31(3): 235-238 doi: 10.1130/0091-7613(2003)031<0235:ROHOIS>2.0.CO;2
Chaussidon M, Albarède F and Sheppard SMF. 1989. Sulphur isotope variations in the mantle from ion microprobe analyses of micro-sulphide inclusions. Earth and Planetary Science Letters, 92(2): 144-156 doi: 10.1016/0012-821X(89)90042-3
Chen S, Hin RC, John T, Brooker R, Bryan B, Niu YL and Elliott T. 2019a. Molybdenum systematics of subducted crust record reactive fluid flow from underlying slab serpentine dehydration. Nature Communications, 10(1): 4773 doi: 10.1038/s41467-019-12696-3
Chen YX, Zheng YF, Gao XY and Hu ZC. 2014. Multiphase solid inclusions in zoisite-bearing eclogite: Evidence for partial melting of ultrahigh-pressure metamorphic rocks during continental collision. Lithos, 200-201: 1-21 doi: 10.1016/j.lithos.2014.04.004
Chen YX, Lu WN, He YS, Schertl HP, Zheng YF, Xiong JW and Zhou K. 2019b. Tracking Fe mobility and Fe speciation in subduction zone fluids at the slab-mantle interface in a subduction channel: A tale of whiteschist from the western Alps. Geochimica et Cosmochimica Acta, 267: 1-16 doi: 10.1016/j.gca.2019.09.020
Chin EJ, Shimizu K, Bybee GM and Erdman ME. 2018. On the development of the calc-alkaline and tholeiitic magma series: A deep crustal cumulate perspective. Earth and Planetary Science Letters, 482: 277-287 doi: 10.1016/j.epsl.2017.11.016
Chowdhury P and Dasgupta R. 2019. Effect of sulfate on the basaltic liquidus and Sulfur Concentration at Anhydrite Saturation (SCAS) of hydrous basalts: Implications for sulfur cycle in subduction zones. Chemical Geology, 522: 162-174 doi: 10.1016/j.chemgeo.2019.05.020
Chowdhury P and Dasgupta R. 2020. Sulfur extraction via carbonated melts from sulfide-bearing mantle lithologies: Implications for deep sulfur cycle and mantle redox. Geochimica et Cosmochimica Acta, 269: 376-397 doi: 10.1016/j.gca.2019.11.002
Crossley RJ, Evans KA, Jeon H and Kilburn MR. 2018. Insights into sulfur cycling at subduction zones from in-situ isotopic analysis of sulfides in high-pressure serpentinites and 'hybrid' samples from Alpine Corsica. Chemical Geology, 493: 359-378 doi: 10.1016/j.chemgeo.2018.06.014
de Hoog JCM, Mason PRD and van Bergen MJ. 2001a. Sulfur and chalcophile elements in subduction zones: Constraints from a laser ablation ICP-MS study of melt inclusions from Galunggung Volcano, Indonesia. Geochimica et Cosmochimica Acta, 65(18): 3147-3164 doi: 10.1016/S0016-7037(01)00634-2
de Hoog JCM, Taylor BE and van Bergen MJ. 2001b. Sulfur isotope systematics of basaltic lavas from Indonesia: Implications for the sulfur cycle in subduction zones. Earth and Planetary Science Letters, 189(3-4): 237-252 doi: 10.1016/S0012-821X(01)00355-7
Debret B and Sverjensky DA. 2017. Highly oxidising fluids generated during serpentinite breakdown in subduction zones. Scientific Reports, 7(1): 10351 doi: 10.1038/s41598-017-09626-y
Debret B, Andreani M, Delacour A, Rouméjon S, Trcera N, EIMF (Edinburgh Ion Microprobe Facility) and Williams H. 2017. Assessing sulfur redox state and distribution in abyssal serpentinites using XANES spectroscopy. Earth and Planetary Science Letters, 466: 1-11 doi: 10.1016/j.epsl.2017.02.029
Delavault H, Chauvel C, Thomassot E, Devey CW and Dazas B. 2016. Sulfur and lead isotopic evidence of relic Archean sediments in the Pitcairn mantle plume. Proceedings of the National Academy of Sciences of the United States of America, 113(46): 12952-12956 doi: 10.1073/pnas.1523805113
Evans KA. 2012. The redox budget of subduction zones. Earth-Science Reviews, 113(1-2): 11-32 doi: 10.1016/j.earscirev.2012.03.003
Evans KA, Elburg MA and Kamenetsky VS. 2012. Oxidation state of subarc mantle. Geology, 40(9): 783-786 doi: 10.1130/G33037.1
Evans KA, Tomkins AG, Cliff J and Fiorentini ML. 2014. Insights into subduction zone sulfur recycling from isotopic analysis of eclogite-hosted sulfides. Chemical Geology, 365: 1-19 doi: 10.1016/j.chemgeo.2013.11.026
Evans KA and Powell R. 2015. The effect of subduction on the sulphur, carbon and redox budget of lithospheric mantle. Journal of Metamorphic Geology, 33(6): 649-670 doi: 10.1111/jmg.12140
Evans KA and Frost BR. 2021. Deserpentinization in subduction zones as a source of oxidation in arcs: A reality check. Journal of Petrology, 62(3): egab016 doi: 10.1093/petrology/egab016
Farquhar J, Bao HM and Thiemens M. 2000. Atmospheric influence of Earth's earliest sulfur cycle. Science, 289(5480): 756-758 doi: 10.1126/science.289.5480.756
Farquhar J, Wing BA, McKeegan KD, Harris JW, Cartigny P and Thiemens MH. 2002. Mass-independent sulfur of inclusions in diamond and sulfur recycling on early Earth. Science, 298(5602): 2369-2372 doi: 10.1126/science.1078617
Farquhar J and Wing BA. 2003. Multiple sulfur isotopes and the evolution of the atmosphere. Earth and Planetary Science Letters, 213(1-2): 1-13 doi: 10.1016/S0012-821X(03)00296-6
Farquhar J and Jackson M. 2016. Missing Archean sulfur returned from the mantle. Proceedings of the National Academy of Sciences of the United States of America, 113(46): 12893-12895 doi: 10.1073/pnas.1616346113
Ferrando S, Frezzotti ML, Petrelli M and Compagnoni R. 2009. Metasomatism of continental crust during subduction: The UHP whiteschists from the Southern Dora-Maira Massif (Italian Western Alps). Journal of Metamorphic Geology, 27(9): 739-756 doi: 10.1111/j.1525-1314.2009.00837.x
Foden J, Sossi PA and Nebel O. 2018. Controls on the iron isotopic composition of global arc magmas. Earth and Planetary Science Letters, 494: 190-201 doi: 10.1016/j.epsl.2018.04.039
Frezzotti ML, Selverstone J, Sharp ZD and Compagnoni R. 2011. Carbonate dissolution during subduction revealed by diamond-bearing rocks from the Alps. Nature Geoscience, 4(10): 703-706 doi: 10.1038/ngeo1246
Frezzotti ML and Ferrando S. 2015. The chemical behavior of fluids released during deep subduction based on fluid inclusions. American Mineralogist, 100(2-3): 352-377 doi: 10.2138/am-2015-4933
Galvez ME, Connolly JAD and Manning CE. 2016. Implications for metal and volatile cycles from the pH of subduction zone fluids. Nature, 539(7629): 420-424 doi: 10.1038/nature20103
Gerrits AR, Inglis EC, Dragovic B, Starr PG, Baxter EF and Burton KW. 2019. Release of oxidizing fluids in subduction zones recorded by iron isotope zonation in garnet. Nature Geoscience, 12(12): 1029-1033 doi: 10.1038/s41561-019-0471-y
Giacometti F, Evans KA, Rebay G, Cliff J, Tomkins AG, Rossetti P, Vaggelli G and Adams DT. 2014. Sulfur isotope evolution in sulfide ores from Western Alps: Assessing the influence of subduction-related metamorphism. Geochemistry, Geophysics, Geosystems, 15(10): 3808-3829 doi: 10.1002/2014GC005459
Goldhaber MB. 2003. Sulfur-rich sediments. In: Holland HD and Turekian KK (eds. ). Treatise on Geochemistry. Oxford: Pergamon, 257-288
Grevemeyer I, Ranero CR and Ivandic M. 2018. Structure of oceanic crust and serpentinization at subduction trenches. Geosphere, 14(2): 395-418 doi: 10.1130/GES01537.1
Gurenko AA, Belousov AB, Kamenetsky VS and Zelenski ME. 2018. Origin of volatiles emitted by Plinian mafic eruptions of the Chikurachki volcano, Kurile arc, Russia: Trace element, boron and sulphur isotope constraints. Chemical Geology, 478: 131-147 doi: 10.1016/j.chemgeo.2017.10.009
Hermann J and Spandler CJ. 2008. Sediment melts at sub-arc depths: An experimental study. Journal of Petrology, 49(4): 717-740 doi: 10.1093/petrology/egm073
Hernández-Uribe D, Hernández-Montenegro JD, Cone KA and Palin RM. 2020. Oceanic slab-top melting during subduction: Implications for trace-element recycling and adakite petrogenesis. Geology, 48(3): 216-220 doi: 10.1130/G46835.1
Hilton DR, Fischer TP and Marty B. 2002. Noble gases and volatile recycling at subduction zones. Reviews in Geochemistry and Cosmochemistry, 47(1): 319-370
Holser WT, Schidlowski M, Mackenzie FT and Maynard JB, 1988. Geochemical cycles of carbon and sulfur. In: Gregor CB, Garrels RM, Mackenzie FT and Maynard JB (eds. ). Chemical Cycles in the Evolution of the Earth. New York: John Wiley & Sons, 105-173
Huang F and Sverjensky DA. 2019. Extended deep earth water model for predicting major element mantle metasomatism. Geochimica et Cosmochimica Acta, 254: 192-230 doi: 10.1016/j.gca.2019.03.027
Hutchison W, Babiel RJ, Finch AA, Marks MAW, Markl G, Boyce AJ, Stüeken EE, Friis H, Borst AM and Horsburgh NJ. 2019. Sulphur isotopes of alkaline magmas unlock long-term records of crustal recycling on Earth. Nature Communications, 10(1): 4208 doi: 10.1038/s41467-019-12218-1
Jégo S and Dasgupta R. 2013. Fluid-present melting of sulfide-bearing ocean-crust: Experimental constraints on the transport of sulfur from subducting slab to mantle wedge. Geochimica et Cosmochimica Acta, 110: 106-134 doi: 10.1016/j.gca.2013.02.011
Jégo S and Dasgupta R. 2014. The fate of sulfur during fluid-present melting of subducting basaltic crust at variable oxygen fugacity. Journal of Petrology, 55(6): 1019-1050 doi: 10.1093/petrology/egu016
Johnston DT. 2011. Multiple sulfur isotopes and the evolution of Earth's surface sulfur cycle. Earth-Science Reviews, 106(1-2): 161-183 doi: 10.1016/j.earscirev.2011.02.003
Kagoshima T, Sano Y, Takahata N, Maruoka T, Fischer TP and Hattori K. 2015. Sulphur geodynamic cycle. Scientific Reports, 5(1): 8330 doi: 10.1038/srep08330
Kelley KA and Cottrell E. 2009. Water and the oxidation state of subduction zone magmas. Science, 325(5940): 605-607 doi: 10.1126/science.1174156
King PL and McLennan SM. 2010. Sulfur on mars. Elements, 6(2): 107-112 doi: 10.2113/gselements.6.2.107
Konecke BA, Fiege A, Simon AC, Parat F and Stechern A. 2017. Co-variability of S6+, S4+, and S2- in apatite as a function of oxidation state: Implications for a new oxybarometer. American Mineralogist, 102(3): 548-557 doi: 10.2138/am-2017-5907
König S, Rosca C, Kurzawa T, Varas-Reus MI, Dragovic B, Schoenberg R and John T. 2021. Selenium isotope evidence for pulsed flow of oxidative slab fluids. Geochemical Perspectives Letters, 17: 27-32 doi: 10.7185/geochemlet.2110
LaFlamme C, Fiorentini ML, Lindsay MD and Bui TH. 2018. Atmospheric sulfur is recycled to the crystalline continental crust during supercontinent formation. Nature Communications, 9(1): 4380 doi: 10.1038/s41467-018-06691-3
Lee CTA, Luffi P, Le Roux V, Dasgupta R, Albaréde F and Leeman WP. 2010. The redox state of arc mantle using Zn/Fe systematics. Nature, 468(7324): 681-685 doi: 10.1038/nature09617
Lee CTA, Erdman M, Yang WB, Ingram L, Chin EJ and DePaolo DJ. 2018. Sulfur isotopic compositions of deep arc cumulates. Earth and Planetary Science Letters, 500: 76-85 doi: 10.1016/j.epsl.2018.08.017
Li HJ, Zhang LF, Bao XJ, Wykes JL and Liu X. 2021a. High sulfur solubility in subducted sediment melt under both reduced and oxidized conditions: With implications for S recycling in subduction zone settings. Geochimica et Cosmochimica Acta, 304: 305-326 doi: 10.1016/j.gca.2021.04.001
Li JL, Gao J, John T, Klemd R and Su W. 2013. Fluid-mediated metal transport in subduction zones and its link to arc-related giant ore deposits: Constraints from a sulfide-bearing HP vein in lawsonite eclogite (Tianshan, China). Geochimica et Cosmochimica Acta, 120: 326-362 doi: 10.1016/j.gca.2013.06.023
Li JL, Gao J, Klemd R, John T and Wang XS. 2016. Redox processes in subducting oceanic crust recorded by sulfide-bearing high-pressure rocks and veins (SW Tianshan, China). Contributions to Mineralogy and Petrology, 171(8-9): 72 doi: 10.1007/s00410-016-1284-2
Li JL, Schwarzenbach EM, John T, Ague JJ, Huang F, Gao J, Klemd R, Whitehouse MJ and Wang XS. 2020. Uncovering and quantifying the subduction zone sulfur cycle from the slab perspective. Nature Communications, 11(1): 514 doi: 10.1038/s41467-019-14110-4
Li JL. 2021. Metamorphic dehydrations and fluid nature in subduction zones. Journal of Shandong University of Science and Technology (Natural Science), 40(5): 23-29 (in Chinese with English abstract)
Li JL, Schwarzenbach EM, John T, Ague JJ, Tassara S, Gao J and Konecke BA. 2021b. Subduction zone sulfur mobilization and redistribution by intraslab fluid-rock interaction. Geochimica et Cosmochimica Acta, 297: 40-64 doi: 10.1016/j.gca.2021.01.011
Li JL, Klemd R, Huang GF, Ague JJ and Gao J. 2021c. Unravelling slab δ34S compositions from in-situ sulphide δ34S studies of high-pressure metamorphic rocks. International Geology Review, 63(1): 109-129 doi: 10.1080/00206814.2020.1827305
Lyons TW and Gill BC. 2010. Ancient sulfur cycling and oxygenation of the early biosphere. Elements, 6(2): 93-99 doi: 10.2113/gselements.6.2.93
Lyons TW, Reinhard CT and Planavsky NJ. 2014. The rise of oxygen in Earth's early ocean and atmosphere. Nature, 506(7488): 307-315 doi: 10.1038/nature13068
Madrigal P, Gazel E, Denyer P, Smith I, Jicha B, Flores KE, Coleman D and Snow J. 2015. A melt-focusing zone in the lithospheric mantle preserved in the Santa Elena Ophiolite, Costa Rica. Lithos, 230: 189-205 doi: 10.1016/j.lithos.2015.04.015
Malaspina N, Scambelluri M, Poli S, Van Roermund HLM and Langenhorst F. 2010. The oxidation state of mantle wedge majoritic garnet websterites metasomatised by C-bearing subduction fluids. Earth and Planetary Science Letters, 298(3-4): 417-426 doi: 10.1016/j.epsl.2010.08.022
Mandeville CW, Sasaki A, Saito G, Faure K, King R and Hauri E. 1998. Open-system degassing of sulfur from Krakatau 1883 magma. Earth and Planetary Science Letters, 160(3-4): 709-722 doi: 10.1016/S0012-821X(98)00122-8
Mandeville CW, Webster JD, Tappen C, Taylor BE, Timbal A, Sasaki A, Hauri E and Bacon CR. 2009. Stable isotope and petrologic evidence for open-system degassing during the climactic and pre-climactic eruptions of Mt. Mazama, Crater Lake, Oregon. Geochimica et Cosmochimica Acta, 73(10): 2978-3012 doi: 10.1016/j.gca.2009.01.019
Mandeville CW. 2010. Sulfur: A ubiquitous and useful tracer in earth and planetary sciences. Elements, 6(2): 75-80 doi: 10.2113/gselements.6.2.75
Marschall HR and Schumacher JC. 2012. Arc magmas sourced from mélange diapirs in subduction zones. Nature Geoscience, 5(12): 862-867 doi: 10.1038/ngeo1634
Métrich N, Schiano P, Clocchiatti R and Maury RC. 1999. Transfer of sulfur in subduction settings: An example from Batan Island (Luzon volcanic arc, Philippines). Earth and Planetary Science Letters, 167(1-2): 1-14 doi: 10.1016/S0012-821X(99)00009-6
Newton RC and Manning CE. 2005. Solubility of anhydrite, CaSO4, in NaCl-H2O solutions at high pressures and temperatures: Applications to fluid-rock interaction. Journal of Petrology, 46(4): 701-716
Ohmoto H. 1972. Systematics of sulfur and carbon isotopes in hydrothermal ore deposits. Economic Geology, 67(5): 551-578 doi: 10.2113/gsecongeo.67.5.551
Ohmoto H and Goldhaber MB. 1997. Sulfur and carbon isotopes. In: Barnes HL (ed. ). Geochemistry of Hydrothermal Ore Deposits. 3rd Edition. New York: John Wiley & Sons, 517-611
Ono S. 2017. Photochemistry of sulfur dioxide and the origin of mass-independent isotope fractionation in earth's atmosphere. Annual Review of Earth and Planetary Sciences, 45: 301-329 doi: 10.1146/annurev-earth-060115-012324
Patten C, Barnes SJ and Mathez EA. 2012. Textural variations in MORB sulfide droplets due to differences in crystallization history. The Canadian Mineralogist, 50(3): 675-692 doi: 10.3749/canmin.50.3.675
Patten CGC, Pitcairn IK, Teagle DAH and Harris M. 2016. Sulphide mineral evolution and metal mobility during alteration of the oceanic crust: Insights from ODP Hole 1256D. Geochimica et Cosmochimica Acta, 193: 132-159 doi: 10.1016/j.gca.2016.08.009
Pelleter AA, Prouteau G and Scaillet B. 2021. The role of sulphur on the melting of Ca-poor sediment and on trace element transfer in subduction zones: An experimental investigation. Journal of Petrology, 62(9): egab005 doi: 10.1093/petrology/egab005
Peng WG, Zhang LF, Tumiati S, Vitale Brovarone A, Hu H, Cai YC and Shen TT. 2021. Abiotic methane generation through reduction of serpentinite-hosted dolomite: Implications for carbon mobility in subduction zones. Geochimica et Cosmochimica Acta, 311: 119-140 doi: 10.1016/j.gca.2021.07.033
Philippot P and Selverstone J. 1991. Trace-element-rich brines in eclogitic veins: Implications for fluid composition and transport during subduction. Contributions to Mineralogy and Petrology, 106(4): 417-430 doi: 10.1007/BF00321985
Plank T, Cooper LB and Manning CE. 2009. Emerging geothermometers for estimating slab surface temperatures. Nature Geoscience, 2(9): 611-615 doi: 10.1038/ngeo614
Plank T and Manning CE. 2019. Subducting carbon. Nature, 574(7778): 343-352 doi: 10.1038/s41586-019-1643-z
Poirier JP. 1994. Light elements in the Earth's outer core: A critical review. Physics of the Earth and Planetary Interiors, 85(3-4): 319-337 doi: 10.1016/0031-9201(94)90120-1
Pons ML, Debret B, Bouilhol P, Delacour A and Williams H. 2016. Zinc isotope evidence for sulfate-rich fluid transfer across subduction zones. Nature Communications, 7(1): 13794 doi: 10.1038/ncomms13794
Prouteau G and Scaillet B. 2013. Experimental constraints on sulphur behaviour in subduction zones: Implications for TTG and adakite production and the global sulphur cycle since the archean. Journal of Petrology, 54(1): 183-213 doi: 10.1093/petrology/egs067
Rielli A, Tomkins AG, Nebel O, Brugger J, Etschmann B, Zhong R, Yaxley GM and Paterson D. 2017. Evidence of sub-arc mantle oxidation by sulphur and carbon. Geochemical Perspectives Letters, 3(2): 124-132
Rollinson H and Pease V. 2021. Using Geochemical Data: To Understand Geological Processes. 2nd Edition. Cambridge: Cambridge University Press
Rouxel O, Ono S, Alt J, Rumble D and Ludden J. 2008. Sulfur isotope evidence for microbial sulfate reduction in altered oceanic basalts at ODP Site 801. Earth and Planetary Science Letters, 268(1-2): 110-123 doi: 10.1016/j.epsl.2008.01.010
Saal AE, Hauri EH, Langmuir CH and Perfit MR. 2002. Vapour undersaturation in primitive mid-ocean-ridge basalt and the volatile content of earth's upper mantle. Nature, 419(6906): 451-455 doi: 10.1038/nature01073
Schwarzenbach EM, Gill BC, Gazel E and Madrigal P. 2016. Sulfur and carbon geochemistry of the Santa Elena peridotites: Comparing oceanic and continental processes during peridotite alteration. Lithos, 252-253: 92-108 doi: 10.1016/j.lithos.2016.02.017
Schwarzenbach EM, Caddick MJ, Petroff M, Gill BC, Cooperdock EHG and Barnes JD. 2018a. Sulphur and carbon cycling in the subduction zone mélange. Scientific Reports, 8(1): 15517 doi: 10.1038/s41598-018-33610-9
Schwarzenbach EM, Gill BC and Johnston DT. 2018b. Unraveling multiple phases of sulfur cycling during the alteration of ancient ultramafic oceanic lithosphere. Geochimica et Cosmochimica Acta, 223: 279-299 doi: 10.1016/j.gca.2017.12.006
Selverstone J, Franz G, Thomas S and Getty S. 1992. Fluid variability in 2GPa eclogites as an indicator of fluid behavior during subduction. Contributions to Mineralogy and Petrology, 112(2-3): 341-357 doi: 10.1007/BF00310465
Smit KV, Shirey SB, Hauri EH and Stern RA. 2019. Sulfur isotopes in diamonds reveal differences in continent construction. Science, 364(6438): 383-385 doi: 10.1126/science.aaw9548
Su W, Schwarzenbach EM, Chen L, Li YB, John T, Gao J, Chen F and Hu XM. 2019. Sulfur isotope compositions of pyrite from high-pressure metamorphic rocks and related veins (SW Tianshan, China): Implications for the sulfur cycle in subduction zones. Lithos, 348-349: 105212 doi: 10.1016/j.lithos.2019.105212
Sverjensky DA, Harrison B and Azzolini D. 2014. Water in the deep Earth: The dielectric constant and the solubilities of quartz and corundum to 60kb and 1200℃. Geochimica et Cosmochimica Acta, 129: 125-145 doi: 10.1016/j.gca.2013.12.019
Syracuse EM, van Keken PE and Abers GA. 2010. The global range of subduction zone thermal models. Physics of the Earth and Planetary Interiors, 183(1-2): 73-90 doi: 10.1016/j.pepi.2010.02.004
Tang M, Erdman M, Eldridge G and Lee CTA. 2018. The redox "filter" beneath magmatic orogens and the formation of continental crust. Science Advances, 4(5): eaar4444 doi: 10.1126/sciadv.aar4444
Tang M, Lee CTA, Ji WQ, Wang R and Costin G. 2020. Crustal thickening and endogenic oxidation of magmatic sulfur. Science Advances, 6(31): eaba6342 doi: 10.1126/sciadv.aba6342
Tao RB, Zhang LF, Tian M, Zhu JJ, Liu X, Liu JZ, Höfer HE, Stagno V and Fei YW. 2018. Formation of abiotic hydrocarbon from reduction of carbonate in subduction zones: Constraints from petrological observation and experimental simulation. Geochimica et Cosmochimica Acta, 239: 390-408 doi: 10.1016/j.gca.2018.08.008
Tao RB, Zhang LJ and Zhang LF. 2020. Redox evolution of western Tianshan subduction zone and its effect on deep carbon cycle. Geoscience Frontiers, 11(3): 915-924 doi: 10.1016/j.gsf.2019.09.007
Tollan P and Hermann J. 2019. Arc magmas oxidized by water dissociation and hydrogen incorporation in orthopyroxene. Nature Geoscience, 12(8): 667-671 doi: 10.1038/s41561-019-0411-x
Tomkins AG and Evans KA. 2015. Separate zones of sulfate and sulfide release from subducted mafic oceanic crust. Earth and Planetary Science Letters, 428: 73-83 doi: 10.1016/j.epsl.2015.07.028
Ueda A and Sakai H. 1984. Sulfur isotope study of quaternary volcanic rocks from the Japanese Islands Arc. Geochimica et Cosmochimica Acta, 48(9): 1837-1848 doi: 10.1016/0016-7037(84)90037-1
Ulmer P and Trommsdorff V. 1995. Serpentine stability to mantle depths and subduction-related magmatism. Science, 268(5212): 858-861 doi: 10.1126/science.268.5212.858
van Keken PE, Hacker BR, Syracuse EM and Abers GA. 2011. Subduction factory: 4. Depth-dependent flux of H2O from subducting slabs worldwide. Journal of Geophysical Research, 116(B1): B01401
Vitale Brovarone A, Martinez I, Elmaleh A, Compagnoni R, Chaduteau C, Ferraris C and Esteve I. 2017. Massive production of abiotic methane during subduction evidenced in metamorphosed ophicarbonates from the Italian Alps. Nature Communications, 8: 14134 doi: 10.1038/ncomms14134
Wakabayashi J. 2015. Anatomy of a subduction complex: Architecture of the Franciscan Complex, California, at multiple length and time scales. International Geology Review, 57(5-8): 669-746 doi: 10.1080/00206814.2014.998728
Wallace PJ. 2005. Volatiles in subduction zone magmas: Concentrations and fluxes based on melt inclusion and volcanic gas data. Journal of Volcanology and Geothermal Research, 140(1-3): 217-240 doi: 10.1016/j.jvolgeores.2004.07.023
Walters JB, Cruz-Uribe AM and Marschall HR. 2019. Isotopic compositions of sulfides in exhumed high-pressure terranes: Implications for sulfur cycling in subduction zones. Geochemistry, Geophysics, Geosystems, 20(7): 3347-3374 doi: 10.1029/2019GC008374
Walters JB, Cruz-Uribe AM and Marschall HR. 2020. Sulfur loss from subducted altered oceanic crust and implications for mantle oxidation. Geochemical Perspectives Letters, 13: 36-41
Wang SJ, Wang L, Brown M and Feng P. 2016. Multi-stage barite crystallization in partially melted UHP eclogite from the Sulu belt, China. American Mineralogist, 101(3): 564-579 doi: 10.2138/am-2016-5384
Wood BJ, Bryndzia LT and Johnson KE. 1990. Mantle oxidation state and its relationship to tectonic environment and fluid speciation. Science, 248(4953): 337-345 doi: 10.1126/science.248.4953.337
Xu Z and Li Y. 2021. The sulfur concentration at anhydrite saturation in silicate melts: Implications for sulfur cycle and oxidation state in subduction zones. Geochimica et Cosmochimica Acta, 306: 98-123 doi: 10.1016/j.gca.2021.05.027
Zhang ZM, Shen K, Sun WD, Liu YS, Liou JG, Shi C and Wang JL. 2008. Fluids in deeply subducted continental crust: Petrology, mineral chemistry and fluid inclusion of UHP metamorphic veins from the Sulu orogen, eastern China. Geochimica et Cosmochimica Acta, 72(13): 3200-3228 doi: 10.1016/j.gca.2008.04.014
Zheng YF, Chen RX, Xu Z and Zhang SB. 2016. The transport of water in subduction zones. Science China (Earth Sciences), 59(4): 651-681 doi: 10.1007/s11430-015-5258-4
李继磊. 2021. 俯冲带变质脱水作用与流体性质. 山东科技大学学报(自然科学版), 40(5): 23-29 https://www.cnki.com.cn/Article/CJFDTOTAL-SDKY202105003.htm
郑永飞, 陈仁旭, 徐峥, 张少兵. 2016. 俯冲带中的水迁移. 中国科学(地球科学), 46(3): 253-286 https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201603001.htm
-
