EXPERIMENTAL STUDY ON THE DEPOSITION CHARACTERISTICS OF FINE PARTICLE MIGRATION IN STRATIFIED SANDY SOILS
-
摘要:

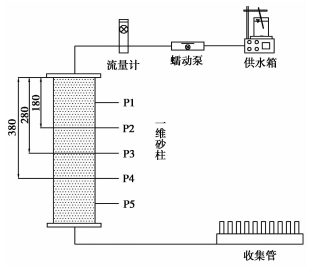

成层土广泛存在于第四纪沉积层，研究成层砂土中细颗粒迁移沉积特性对地下水回灌、注浆等工程具有重要意义。采用室内一维砂柱试验系统，选取3种粒径范围的砂土和21种典型分层方式对悬浮颗粒在饱和砂层中的迁移沉积过程进行研究。结果表明：不同的层状排序对悬浮颗粒的穿透曲线、沉积量和中值粒径有较大影响。当小粒径多孔介质覆盖大粒径多孔介质时，悬浮颗粒的穿透曲线会产生二次峰值，颗粒沉积量随着迁移距离的增加而减少，其沉积颗粒的中值粒径反而增大；当大粒径多孔介质覆盖小粒径多孔介质时，悬浮颗粒的穿透曲线只有一次峰值，颗粒的沉积量在分层处发生突增现象，沉积颗粒的中值粒径在砂柱中部减小。根据渗透系数的变化情况，将悬浮颗粒运动状态分为：沉淀、剥离运移。
Abstract:Quaternary sedimentary strata frequently contain formation soils,therefore understanding the features of how tiny particles in these soils migrate and deposit is crucial for groundwater recharge and grouting projects. Using an indoor,one-dimensional sand column test setup with three different grain size ranges of sandy soils and 21 common stratification techniques,the migration deposition process of suspended particles in saturated sand layers was examined. The findings demonstrate that the penetration curve,particle deposition rate,and median particle size of suspended particles are significantly affected by different stratification sequencing. The penetration curve of suspended particles creates a secondary peak when small-size porous media covers large-size porous media. The number of particles deposition reduces as migration distance rises,but the median particle size of deposited particles increases instead; When large-sized porous media cover smaller-sized porous media,the penetration curve of suspended particles has only one peak,the amount of particles deposited increases suddenly at the stratification,and the median particle size of deposited particles decreases in the middle of the sand column. According to the variation of permeability coefficient,the suspended particles movement state is classified as: sedimentation,stripping transport.
-
Key words:
- Stratified sequencing /
- Porous media /
- Migration /
- Deposition /
- Permeability factor
-
-

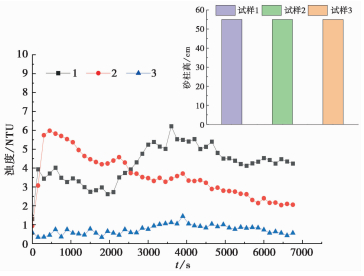

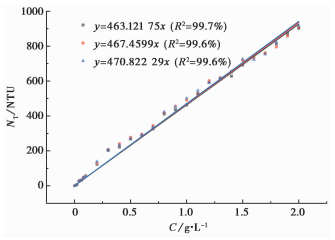

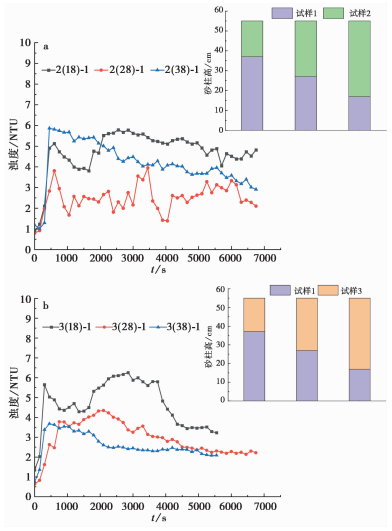

图 5
小粒径覆盖大粒径多孔介质的穿透曲线：(a) 试样2覆盖试样1；(b) 试样3覆盖试样1
Figure 5.
Penetration curve of small particle size covering large particle size porous media

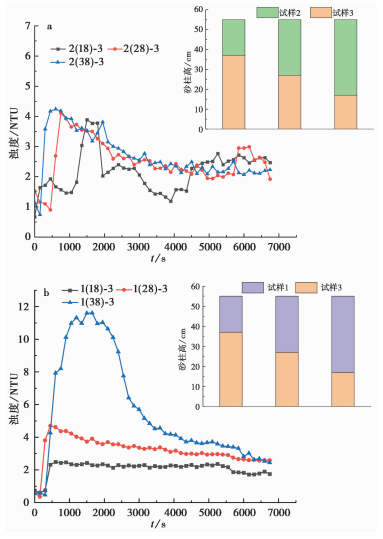

图 6
大粒径覆盖小粒径多孔介质的穿透曲线：(a) 试样2覆盖试样3；(b) 试样1覆盖试样3
Figure 6.
Penetration curve of large particle size covering small particle size porous media

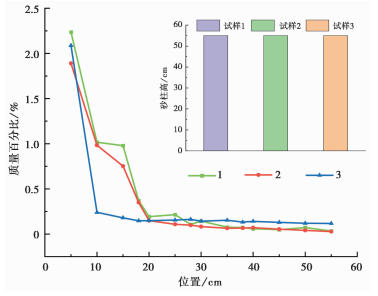

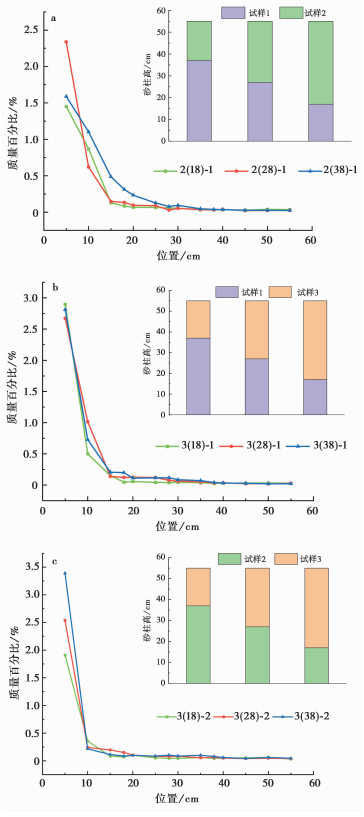

图 8
小粒径覆盖大粒径组合的沉积曲线：(a) 试样2覆盖试样1；(b) 试样3覆盖试样1；(c) 试样3覆盖试样2
Figure 8.
Deposition curves for small particle size covering large particle size combination

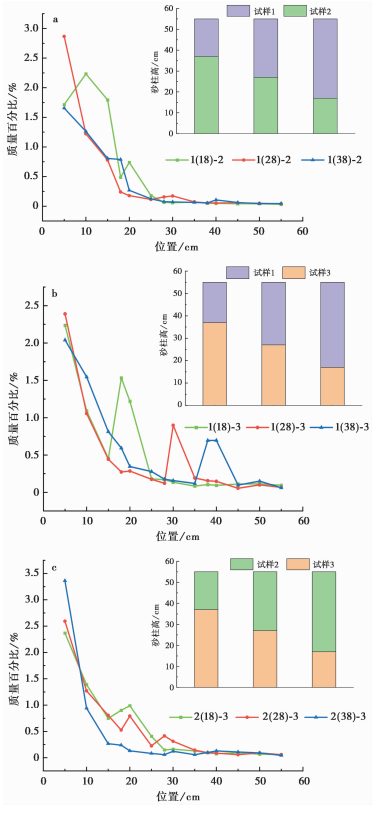

图 9
大粒径覆盖小粒径组合的沉积曲线：(a) 试样1覆盖试样2；(b) 试样1覆盖试样3；(c) 试样2覆盖试样3
Figure 9.
Deposition curves for large particle size overlay small particle size combinations

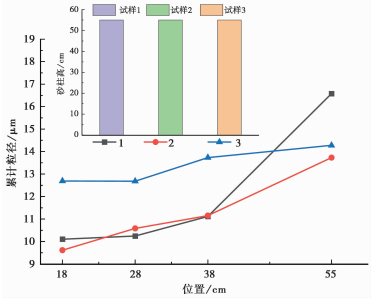

图 10
单一多孔介质的中值粒径变化关系
Figure 10.
Median particle size variation relationship for a single porous medium

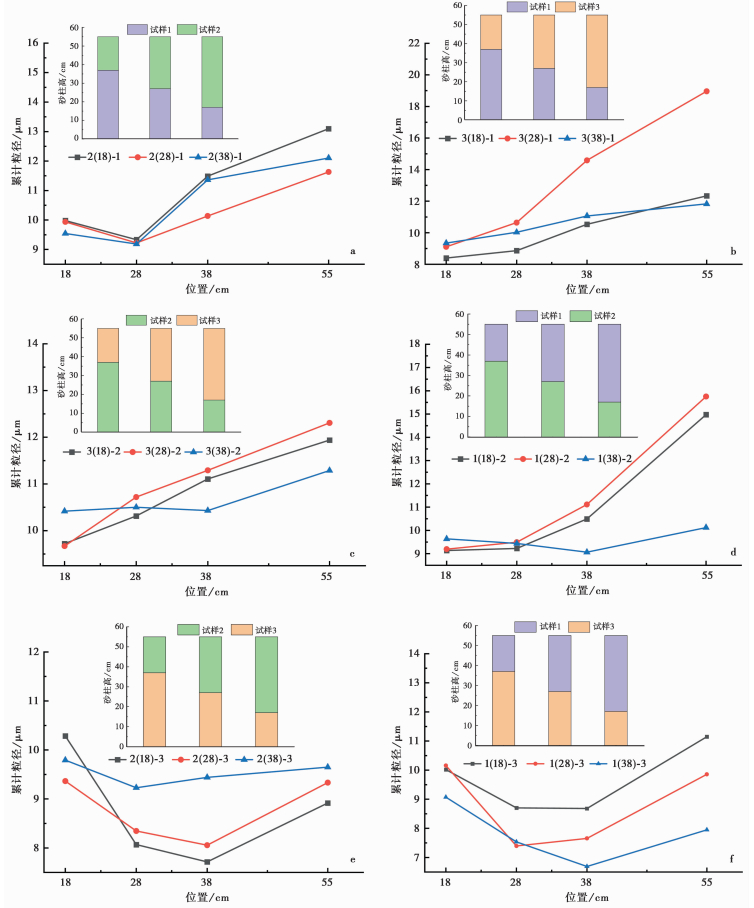

图 11
沉积颗粒中值粒径与沉积位置的关系：(a) 试样2覆盖试样1；(b) 试样3覆盖试样1；(c) 试样3覆盖试样2；(d) 试样1覆盖试样2；(e) 试样2覆盖试样3；(f) 试样1覆盖试样3
Figure 11.
Relationship between median particle size and deposition location of deposited particles

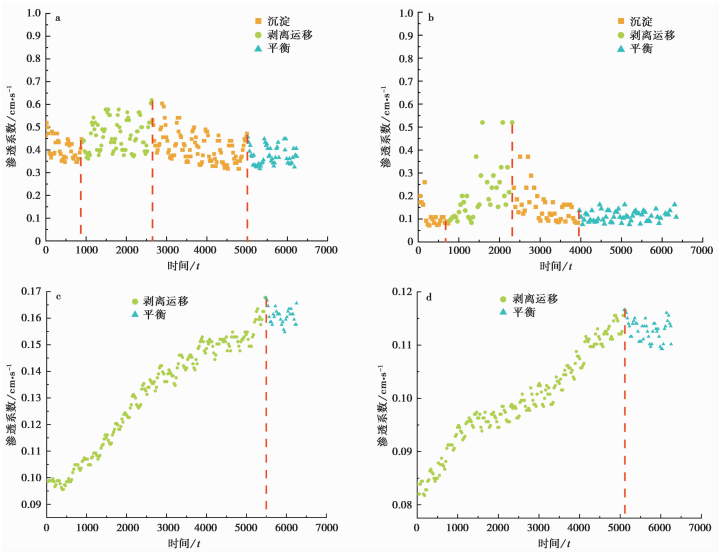

图 12
渗透系数变化过程：(a) 试样1上层18cm+试样2下层37cm；(b) 试样2上层18cm+试样1下层37cm；(c) 试样3上层28 cm+试样2下层27cm；(d) 试样2上层28cm+试样3下层27cm
Figure 12.
Permeability coefficient change process

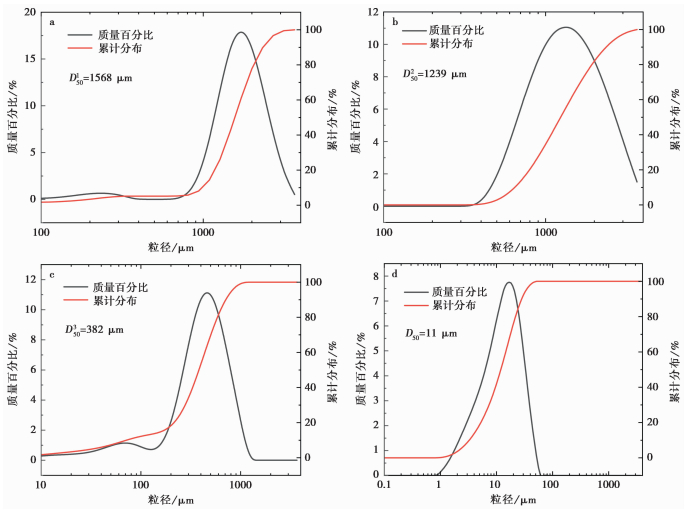

表 1
试验材料物理参数
Table 1.
Physical parameters of test materials
材料 D50 /μm 孔隙率/% 比表面积/m2·kg-1 渗透系数/cm·s-1 试样1 1568 45 8 5.85×10-1 试样2 1239 49 5 3.75×10-1 试样3 382 50 54 1.10×10-2 硅微粉 11 — 816 —
下载: 导出CSV
表 2
试验方案
Table 2.
Experimental program
组数 砂样 砂柱组合方式 名称 1 试样1 55cm 1 2 试样2 55cm 2 3 试样3 55cm 3 4 试样2 上层18cm 2(18)-1 试样1 下层37cm 5 试样2 上层28cm 2(28)-1 试样1 下层27cm 6 试样2 上层38cm 2(38)-1 试样1 下层17cm 7 试样1 上层18cm 1(18)-2 试样2 下层37cm 8 试样1 上层28cm 1(28)-2 试样2 下层27cm 9 试样1 上层38cm 1(38)-2 试样2 下层17cm 10 试样3 上层18cm 3(18)-1 试样1 下层37cm 11 试样3 上层28cm 3(28)-1 试样1 下层27cm 12 试样3 上层38cm 3(38)-1 试样1 下层17cm 13 试样1 上层18cm 1(18)-3 试样3 下层37cm 14 试样1 上层28cm 1(28)-3 试样3 下层27cm 15 试样1 上层38cm 1(38)-3 试样3 下层17cm 16 试样3 上层18cm 3(18)-2 试样2 下层37cm 17 试样3 上层28cm 3(28)-2 试样2 下层27cm 18 试样3 上层38cm 3(38)-2 试样2 下层17cm 19 试样2 上层18cm 2(18)-3 试样3 下层37cm 20 试样2 上层28cm 2(28)-3 试样3 下层27cm 21 试样2 上层38cm 2(38)-3 试样3 下层17cm
